Hatko l Noise Barriers

Description

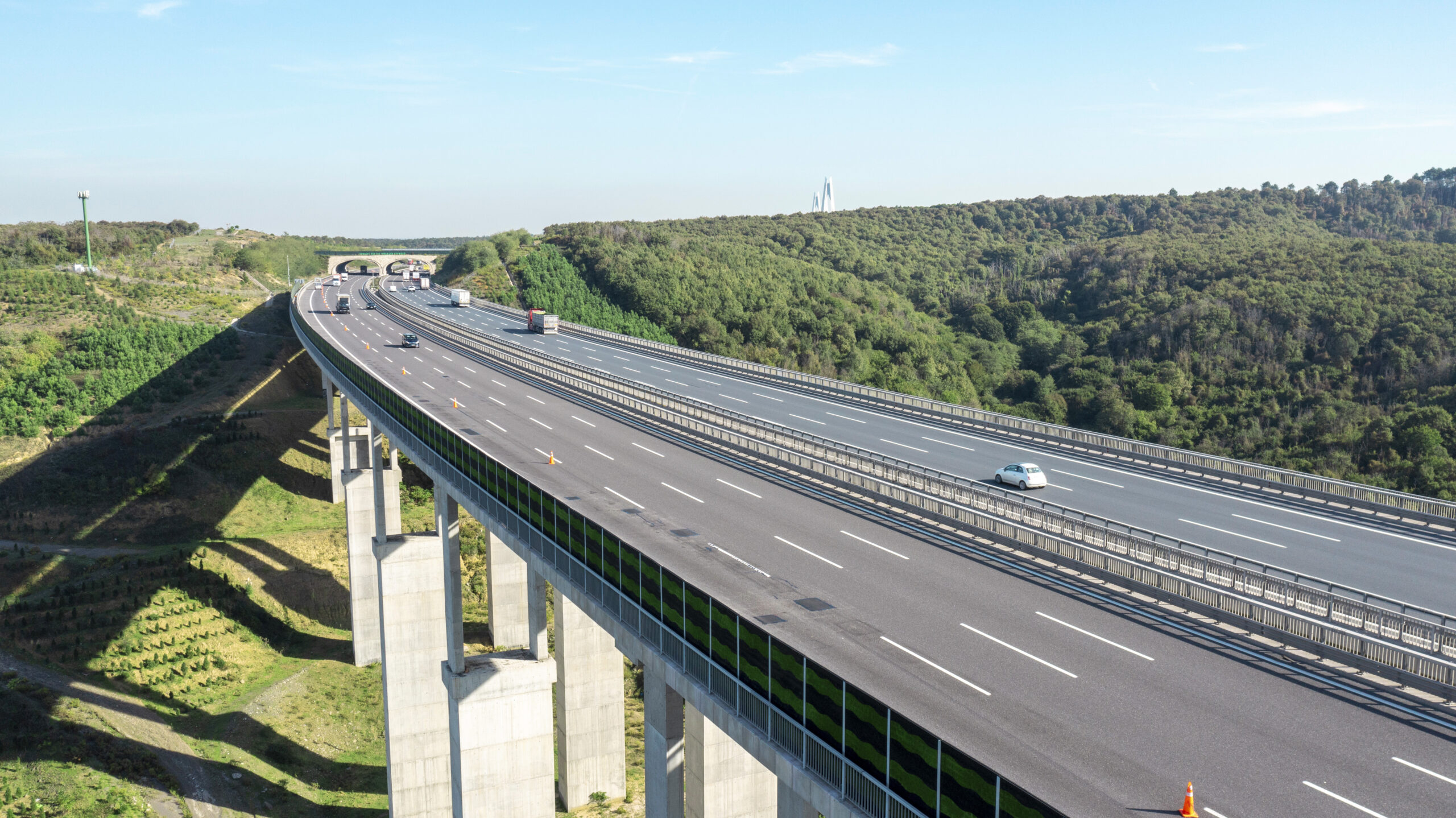

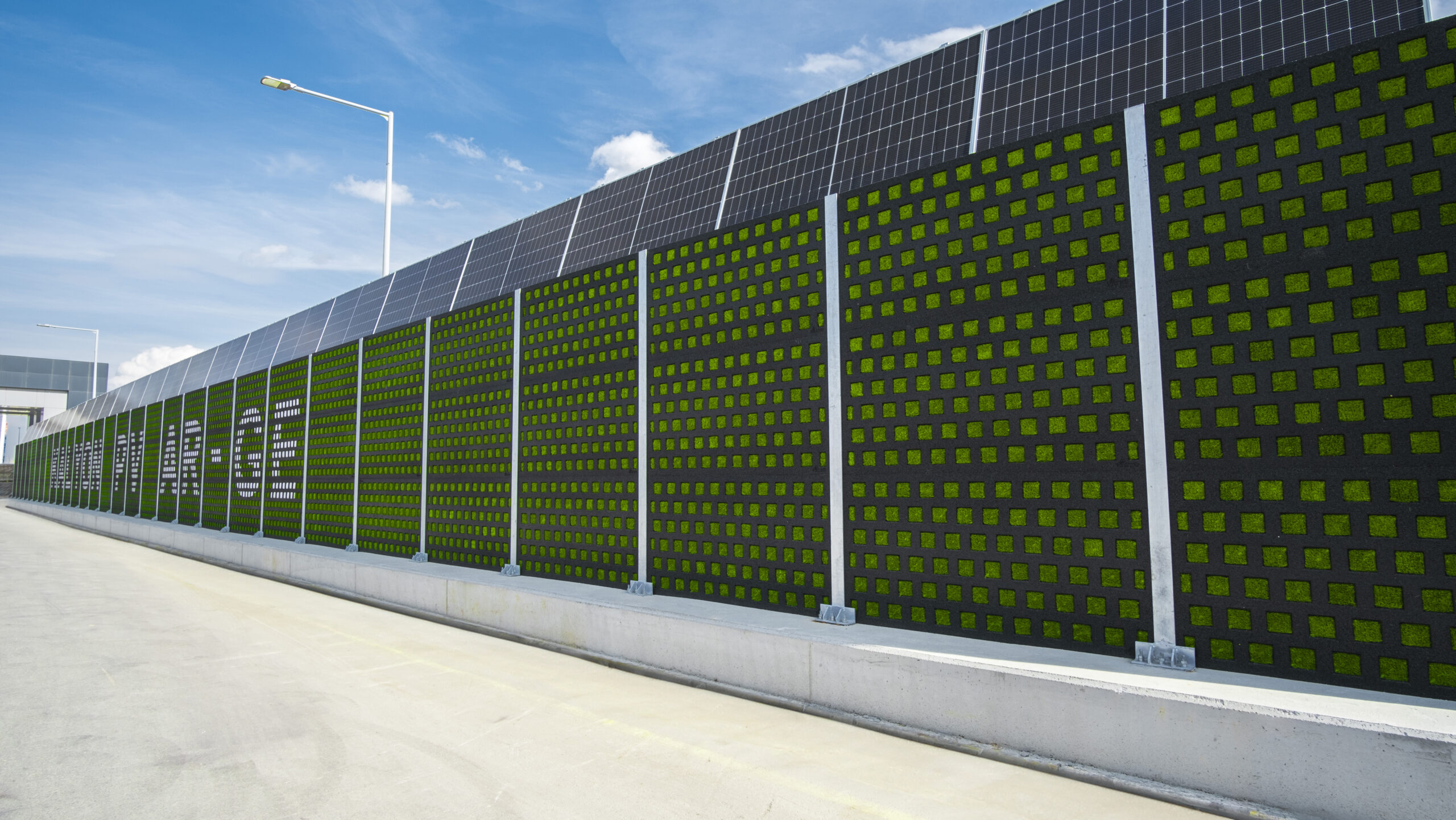

HATKO Recycled Rubber Tyre Noise Barrier system has been specially designed to reduce noise generated by road, rail and industrial traffic. High in density and HATKO acoustic fence panels focus on high performance and NET Zero.

2 Pollutions 1 Solution

Specification

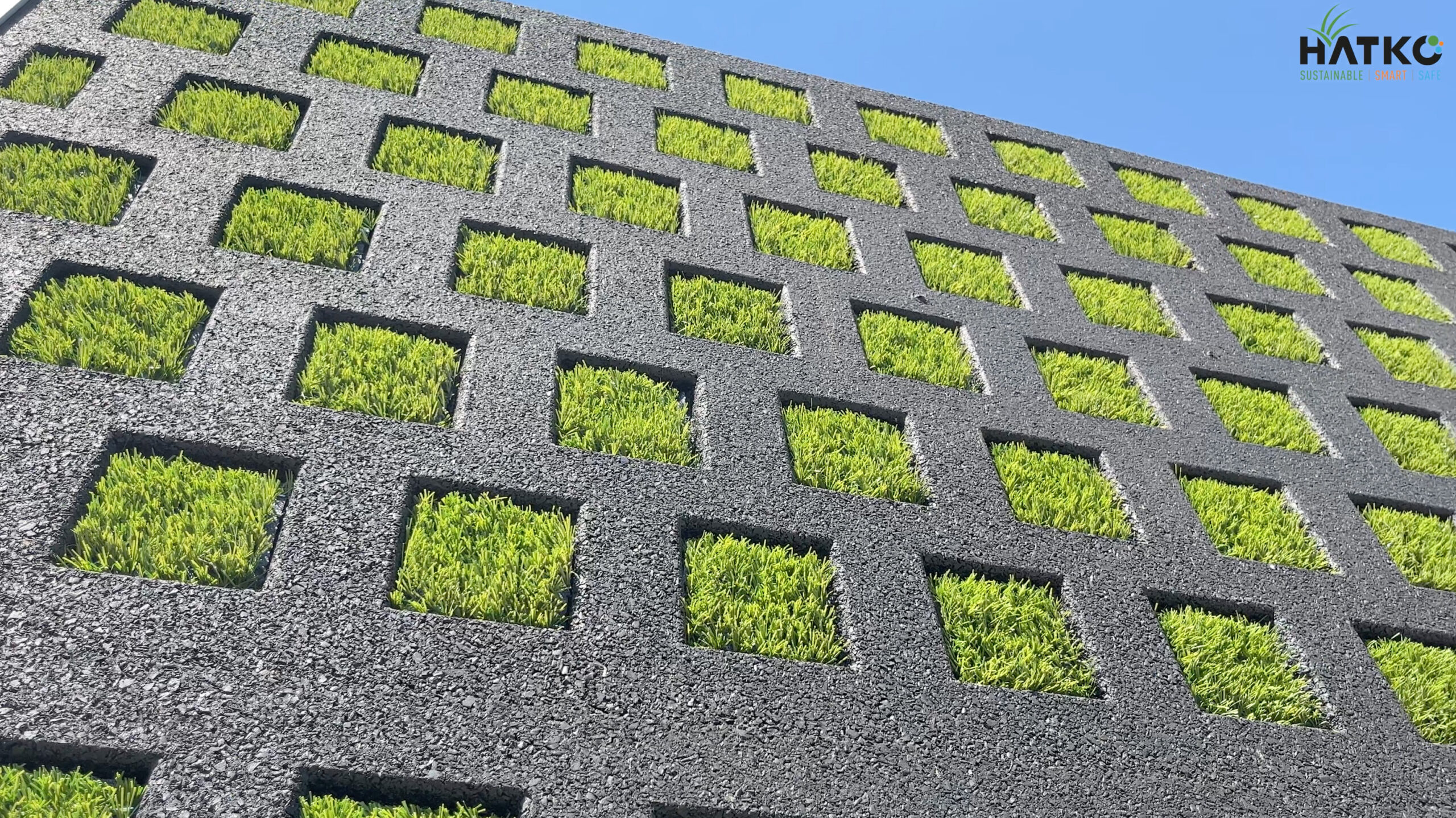

HATKO noise barrier panels are made from high strength recycled rubber tyre’s which has a 30+ design year life span.

The inside of the barrier panel is made up of sound absorbing recycled plastic to achieve an A3 noise reduction rating.

Benefits & Advantages

Being produced of recycled rubber derived from end-of-life tyres; it is the most sustainable solution for noise barrier projects,
Endless contribution into the circular economy,
High performance of sound insulation and absorption,
Significantly reducing the noise of the traffic without compromising the view,
aligning with the nearby scape thanks to its aesthetic design,
With its dual face design, can be adapted to any environment,
Reinforced with a rigid backbone for extra stability,

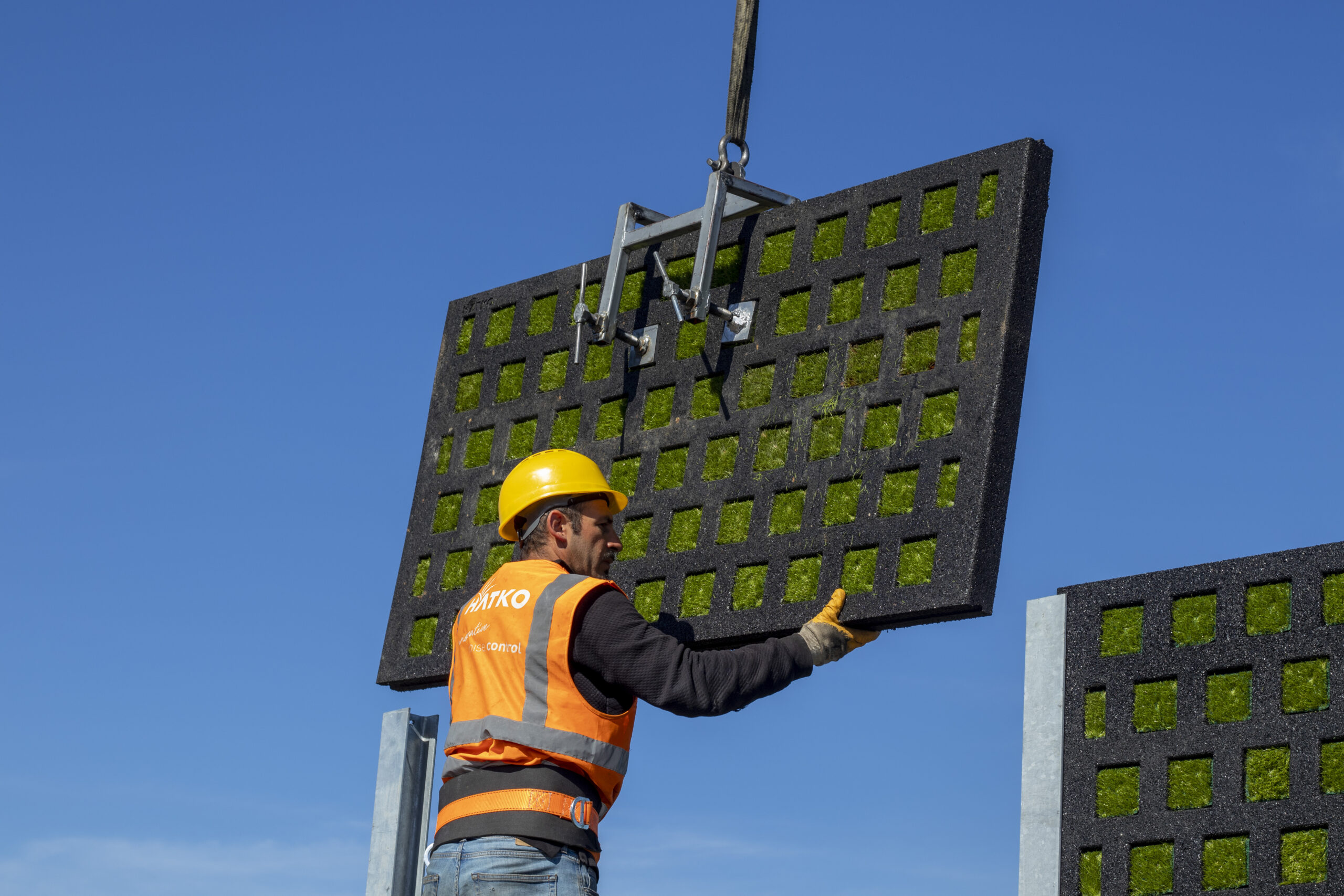

Ease of installation and reinstallation,
Requiring no maintenance,
Designed to resist to fires obtaining safety for nearby environment and
passive fire protection,
Resistance when exposed to all adverse weather conditions,
Resistance to abrasion gaining high durability,
Compliance with the requisite international standards such as EN 1793, EN 1794, EN 16272, EPD and TUV.

Technical

Class = A3,B4
Acoustic Performance = Dlα 15 dB for rail, Dlα 11 dB for road, DLʀ 38dB,
Design Life of barrier = 30 years
Design Life of Steel Posts = 60 + Years
Barrier Heights = From 0.5m – 10m+ (Bespoke heights available on request)
Bay Widths = 2.0m
Weight = 68.0kg/m2
Material = Recycled Rubber

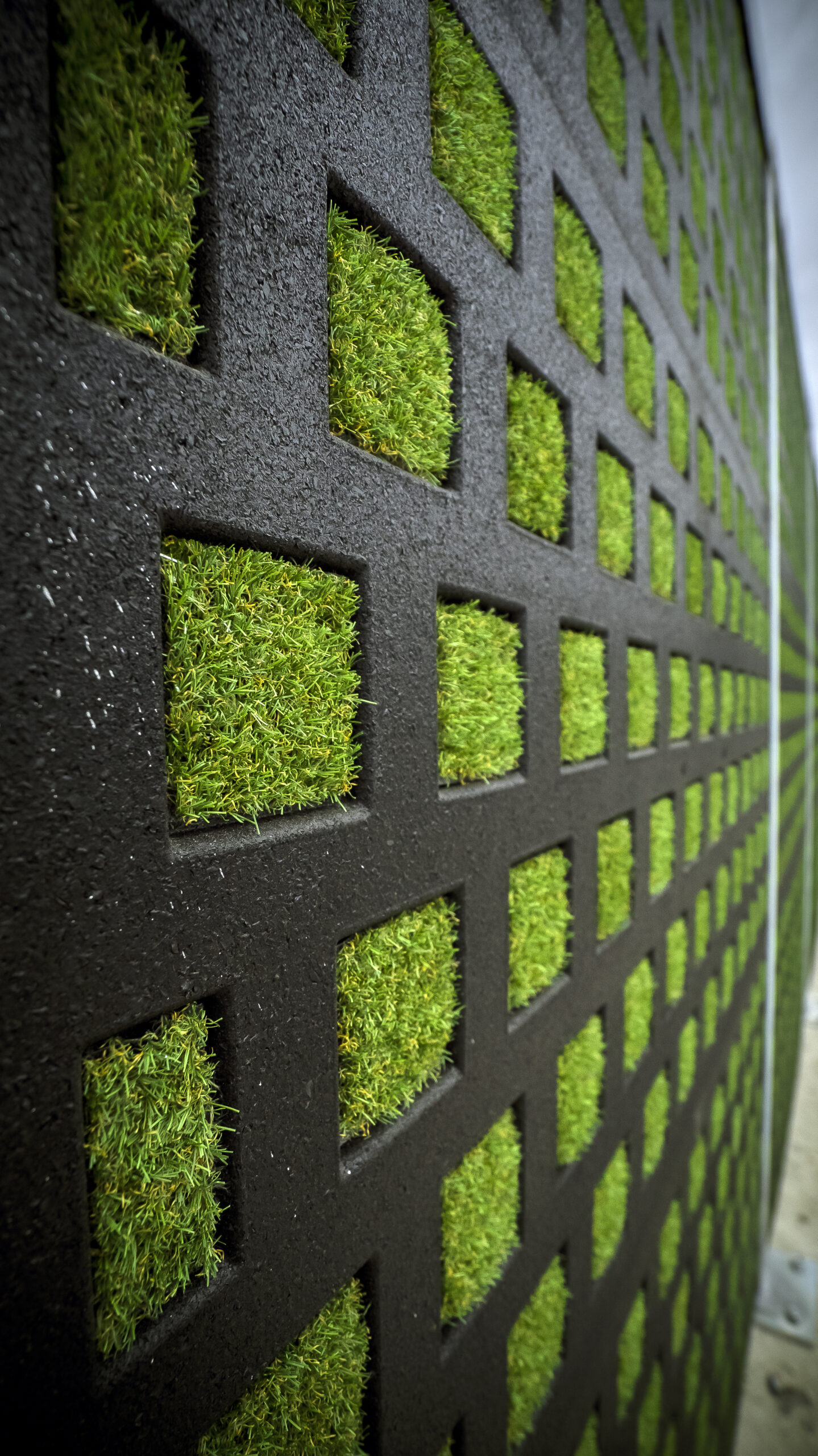

Finish = Rubber and Artificial Turf

Foundation types

HATKO noise barrier system can be either set into concrete foundations, bolted down to individual concrete pads or a continuous concrete strip/pad.

Fixing methods

a) Galvanised steel or PPC posts with baseplates can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles.
b) Steel posts can be set into augered or bucket dug concrete foundations.
