ArmaMeshTWIN

Description

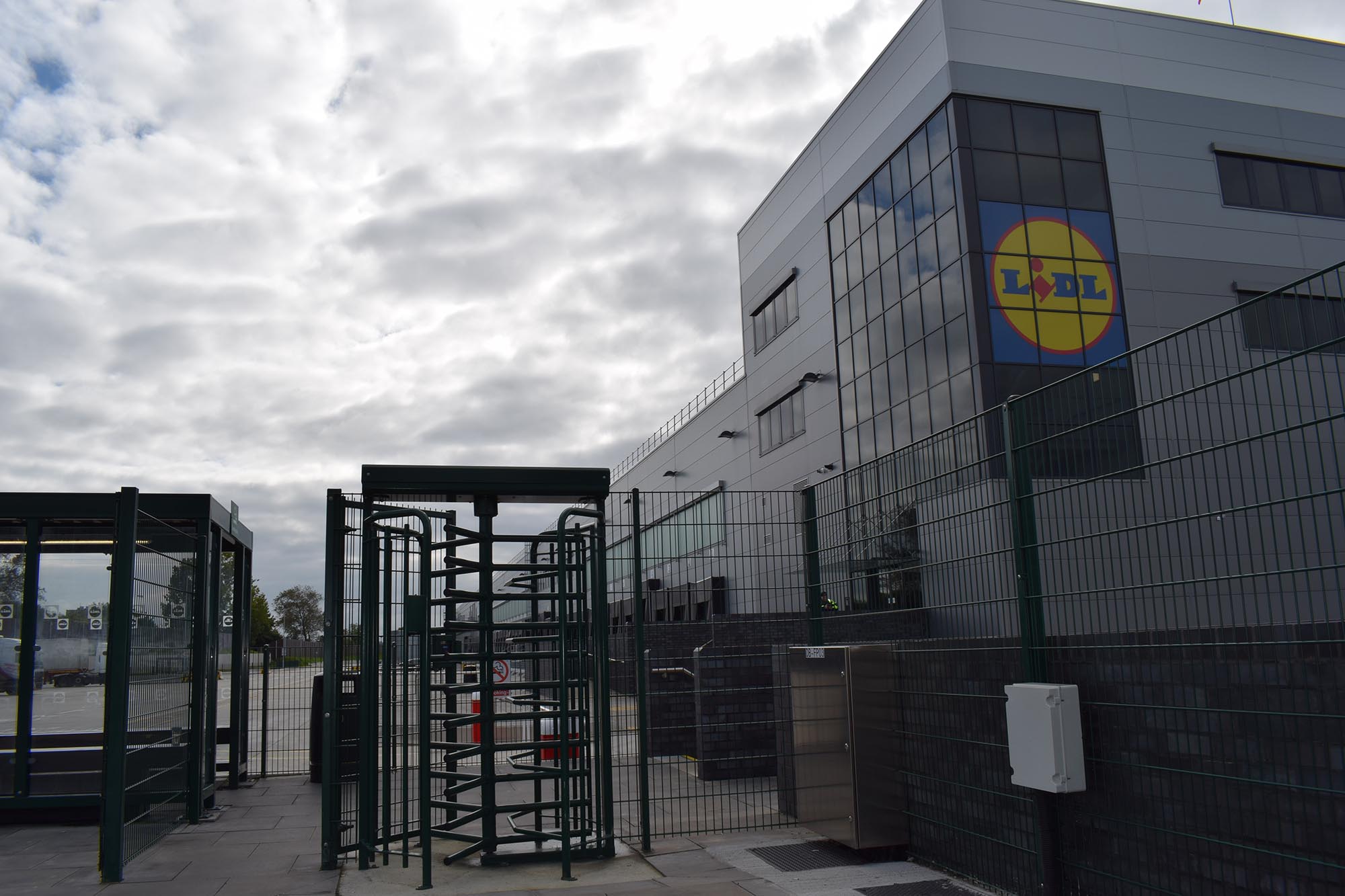

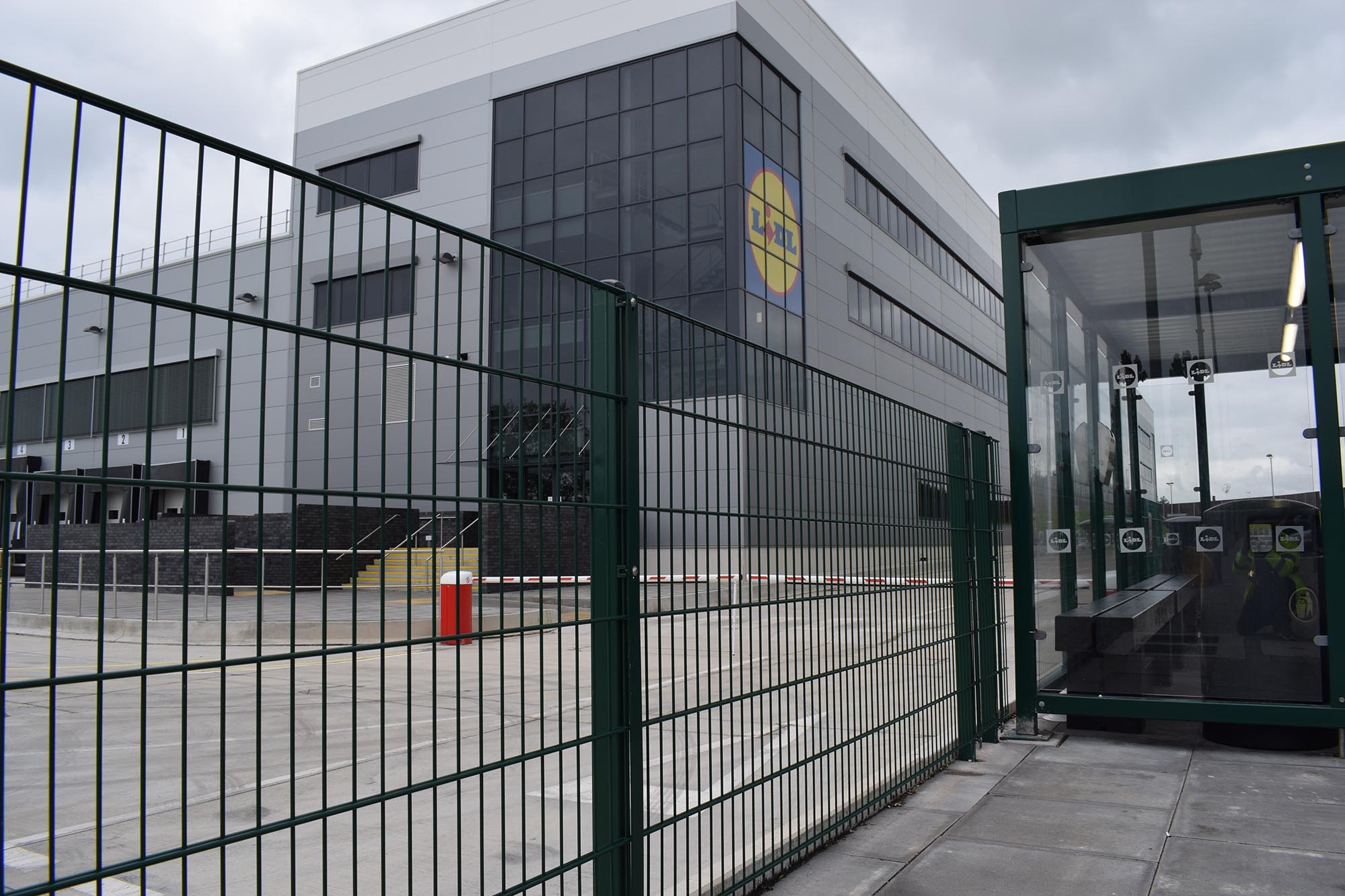

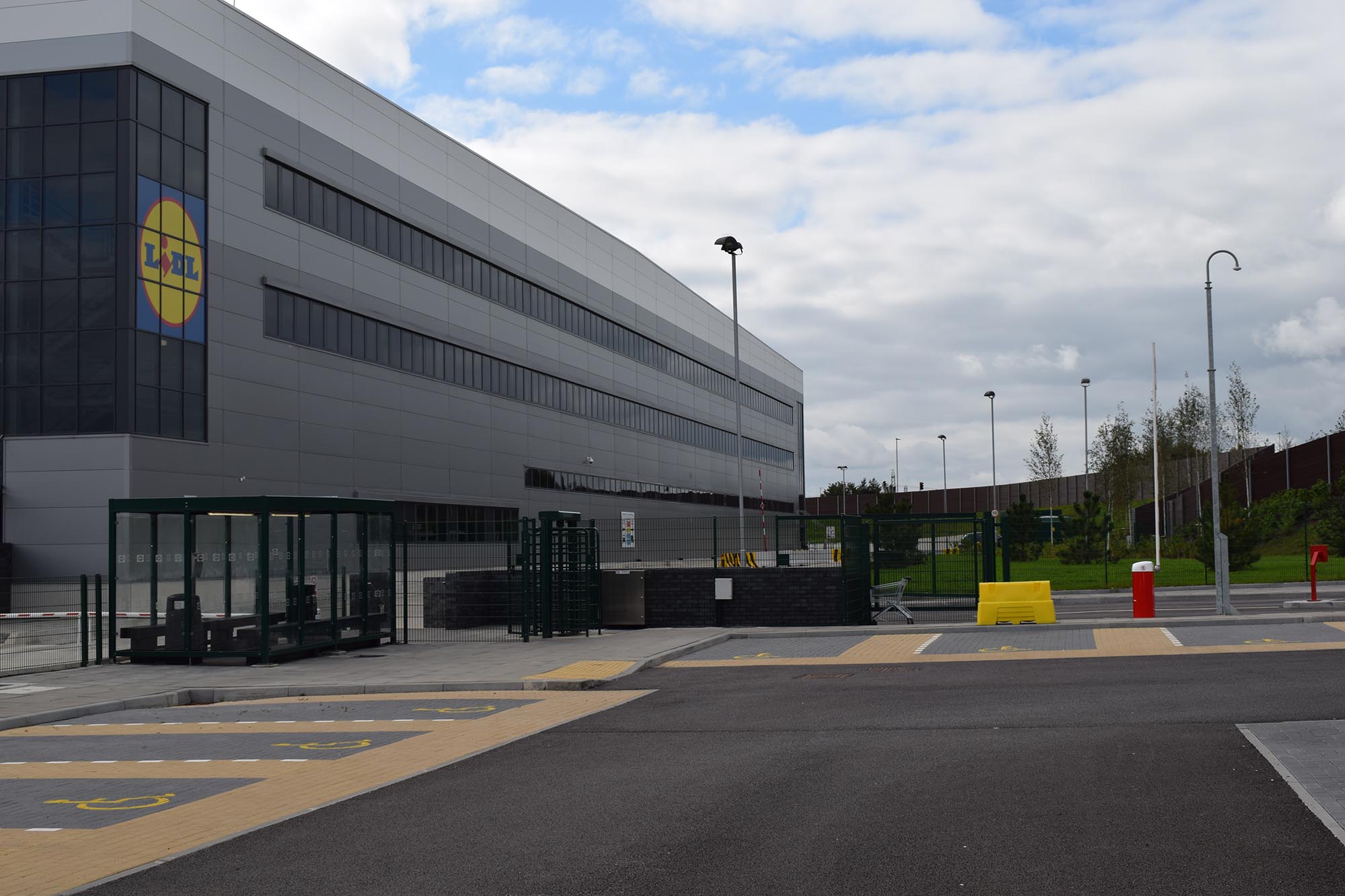

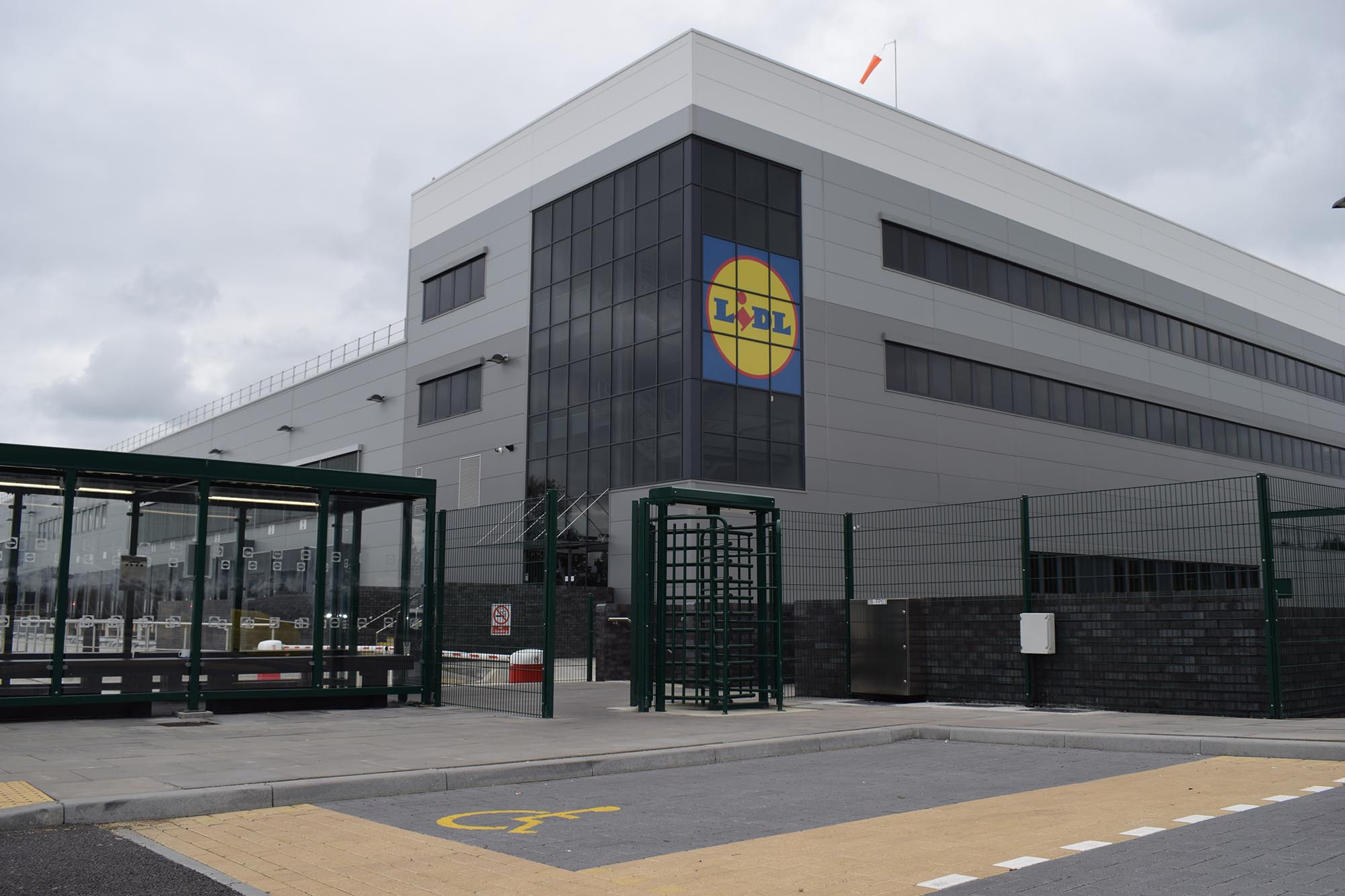

The perfect example of a true multi-use fencing system, the ArmaMeshTWIN double wire panel system is suitable anywhere you need anti-cut-through protection. Designed for Commercial Fencing projects it is also suitable for school playgrounds, retail premises, business parks, public buildings and secure car parks.

Specification

ArmaMeshTWIN is manufactured from twin 6mm diameter horizontal wires either side of 5mm diameter vertical wires, providing an excellent defence against vandals and intruders.

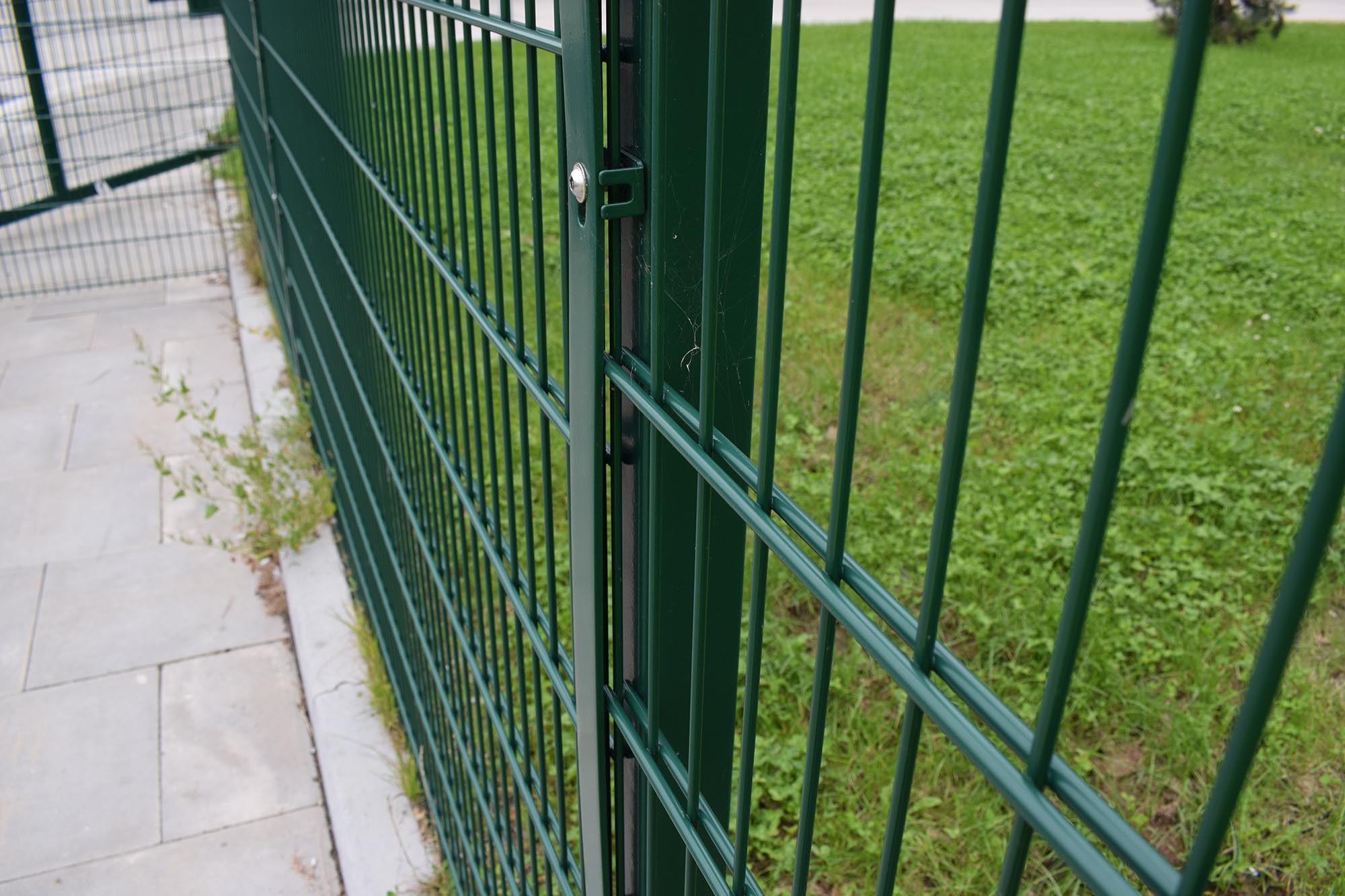

Panels are fixed to steel posts using metal clips with tamper-proof angled returns, which are secured in place with pin hex screws for added security. And if you need even more protection, ArmaMeshTWIN is available in a Secured by Design option – ArmaMeshTWIN SR1.

For quality assurance and added peace of mind, the system also conforms to BS 1722-14 for open mesh steel panel fences.

Technical

Height:	630mm/830mm/1030mm/1230mm/1430mm/1630mm/1830mm/2030mm/2430mm/2660mm/2860mm/3030mm/3460mm/3860mm/4060mm
Nominal Height:	0.6m/0.8m/1.0m/1.2m/1.4m/1.6m/1.8m/2.0m/2.4m/2.7m/2.8m/3.0m/3.4m/3.8m/4.0m
Mesh & Wire:	200 x 50mm mesh; 5mm verticals and twin 6mm horizontal nominal wires, galvanised and polyester powder-coated to 60 microns
Posts:	60 x 40 mm RHS, galvanised after manufacture and polyester powder-coated with 47 x 35 mm steel clips galvanised and polyester powder-coated to match fencing. (630mm – 2430mm Panels ONLY) 80 x 40 mm RHS, galvanised after manufacture and polyester powder-coated with 47 x 35 mm steel clips galvanised and polyester powder-coated to match fencing. (2860mm – 4060mm Panels ONLY)
Fixings:	M8 x 40 mm stainless steel pin hex dome-head security screws
Set Posts:	Set posts in holes 300 mm diameter x 800** mm deep, filled not less than half the depth with concrete, as clause 620
Maximum Posts Centres:	2520mm
Bottom of Fencing to Be:	approx. 50 mm above final ground level
Other Requirements:	PPC Colour Green RAL 6005. A full range of RAL Colours are available from CLD Fencing Systems including marine grade and metallics.

Foundation types

Gramms ArmaMeshTWIN mesh fencing system can be either set into concrete foundations or bolted down to individual concrete pads or a continuous concrete strip/pad.

Fixing methods

a) Galvanised steel or PPC posts with baseplates can be fixed to concrete surfaces using chemfix resin anchors or cast in cradles.
b) Steel posts can be set into augered or bucket dug concrete foundations.
